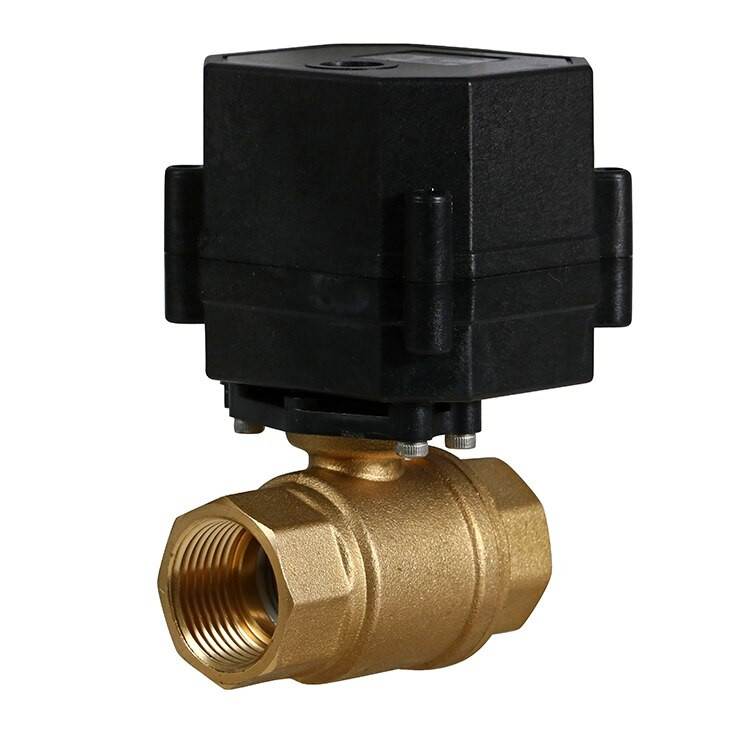

2-Way Motorized Ball Valves provide electrically actuated shutoff for water, compressed air, and compatible process media in systems where quarter-turn ball valve operation is preferred over solenoid-only valve designs. The BV Series combines a brass full-port valve body with electric motorized actuation for on-off control in utility, OEM, and process applications.
This series comes in 1/2 inch to 1-inch female NPT sizes and supports either XR22 or XR33 actuators. It supports 0 to 185 psi operation and fits continuous duty applications because the actuator draws power during actuation only.
Available Configurations
| Configuration Item | Details |
|---|---|
| Valve type | 2-way motorized ball valve |
| Valve body material | Brass |
| Internal components | Stainless steel |
| Ball seat material | PTFE |
| Seal material shown | FKM shown in the main valve specification, with FKM and EPDM appearing in the ordering and parts information |
| Port configuration | 2-way |
| Connection type | Female NPT |
| Available sizes | 1/2 inch, 3/4 inch, 1 inch |
| Compatible actuators | XR22, XR33 |
| Wiring options | XR22 2-wire, XR33 3-wire |
| Actuator fail position | XR22 fail close, XR33 last position |
Technical Specifications
The BV Series is a full-port motorized brass ball valve built for electrically actuated shutoff with compact actuator options. As a result, it is well-suited to applications where users prefer higher flow capacity, anti-water-hammer behavior, and quarter-turn valve operation.
| Specification | Details |
|---|---|
| Valve type | Motorized 2-way brass ball valve |
| Port style | Full port |
| Operating pressure | 0 to 185 psi |
| Media temperature | 35 to 200°F |
| Pipe sizes | 1/2 inch, 3/4 inch, 1 inch |
| Thread connection | NPT female |
| Actuator options | XR22, XR33 |
| Actuator torque | 3 Nm |
| Duty rating | 100% ED |
| Open/close time | 5 seconds or less |
| Actuator ambient temperature | 5 to 120°F |
| Enclosure rating | IP67, NEMA 4 equivalent |
| Approvals | CE compliant, EMC compliant |
Actuator Options
| Actuator | Wiring Type | Actuation Method | Fail Position | Supply Voltage |
|---|---|---|---|---|
| XR22 | 2-wire | Capacitor-assisted | Fail close | 9-24V AC/DC, 110-230V AC |
| XR33 | 3-wire | Direct motor-driven | Last position | 9-24V AC/DC |
Pressure, Temperature, and Media Fit
Check material compatibility before selection, especially for chemical service, seal selection, and media exposure outside routine water or air duty.
Dimensions and Size Range
The BV Series is available in compact 1/2 inch to 1 inch sizes for threaded piping layouts, allowing engineers to check actuator clearance and valve envelope dimensions against nearby components or available panel space.
| Pipe Size | Port Size D1/D2 | d (mm) | L1 (mm) | L2 (mm) | E1 (mm) | H1 (mm) | H2 (mm) |
|---|---|---|---|---|---|---|---|
| 1/2 inch | 1/2 inch | 15 | 57 | 12 | 25 | 83.5 | 16 |
| 3/4 inch | 3/4 inch | 20 | 65.5 | 15 | 31 | 88.5 | 19 |
| 1 inch | 1 inch | 23.5 | 71.5 | 16 | 38 | 89 | 22 |
Design and Performance
- Electric motorized actuation
- Full port design for higher flow capacity
- Anti-water hammer performance
- Power required during actuation only
- Suitable for continuous duty applications
- IP67 actuator enclosure, NEMA 4 equivalent
- Compact quarter-turn actuator format
- Threaded NPT body for straightforward installation in smaller line sizes
Typical Uses
| Application / System | Typical Use |
|---|---|
| Process water control | On-off shutoff in utility and process water lines |
| Compressed air systems | Quarter-turn shutoff for plant air or machine air service |
| Chemical processing | Motorized shutoff where material compatibility has been confirmed |
| HVAC and building automation | Automated line control in heating, cooling, or utility systems |
| Water distribution lines | Electric shutoff in threaded branch or control lines |
| Filtration systems | Automated isolation and routing in filtration assemblies |
| OEM skids and control packages | Compact motorized shutoff for packaged equipment |
| General utility shutoff | Electrically actuated shutoff where quarter-turn control is preferred |
Technical Resources
Review size, actuator type, supply voltage, and seal material before final selection. In addition, the ordering structure separates pipe size, seal material, wiring type, and voltage code, which makes quote matching easier for distributor and OEM workflows.
- Download the 2-Way Motorized Ball Valves spec sheet
- Confirm voltage and wiring requirements
- Review seal material before chemical service use
- Contact Atlantic Valves for product support and quoting
Technical Note
These valves are not for use in medical life support, combustion, aviation, aerospace, automotive, or similar applications. Review body and seal compatibility before final selection, especially for chemical processing service.
